Oberheim DMX MIDI Upgrade Installation
The Electrongate MIDI Upgrade Kit for the Oberheim DMX drum machine adds MIDI capability and 7000 note capacity
to the DMX. The kit version can be installed by anyone posessing moderate experience in electronic assembly
and soldering. If you don't feel up to the task, you can have the MIDI kit installed professionally by
Electrongate for an additional fee.
But if you're ready to give it a try, these instructions will take you through the process, step by step.
Note: These instructions are for MIDI boards with serial numbers of
10-0165 and higher. For older versions, see this
Parts supplied with Electrongate MIDI Kit:
- (1) Assembled and tested MIDI circuit board.
- (4) #6 threaded standoffs.
- (1) MIDI cable assembly with mounting plate and modified right-side
walnut end panel (optional).
- (1) Addendum to owner's manual.
- (1) Link to these installation instructions.
Tools required for installation:
- #2 Phillips screwdriver
- 1/4 inch nut driver
- Small flat-blade screwdriver or DIP IC chip puller
- Small diagonal cutters
- X-acto knife with #11 blade
- Soldering iron and rosin-core tin/lead solder
Installation: Step By Step
- Turn off the power and disconnect the AC power cable from the DMX.
- Remove the two screws on the front of the DMX and open the cover.
- Remove four screws from the DMX main board as shown below and set them
aside. These will be reused later.
- Install the four standoffs provided in place of the screws that were
(If your DMX is already equipped with a memory expansion
The MIDI upgrade board will take its place, with no loss in
- Remove IC 12 (Z-80 CPU) from the DMX main board and
set it aside. Your MIDI board comes with a new Z-80 CPU rated for
the higher clock speed used by the MIDI interface.
- Observe IC polarity -- line up notch in IC with notch in socket.
- IC numbers are printed on the circuit board near each IC.
- Use a small flat blade
screwdriver to remove ICs by alternately levering each end up a little at a
time. Keep the screwdriver between
the IC and the socket; not under the socket.
- Be careful not to bend the pins. If you do bend any pins,
straighten them out before reinstalling the IC.
- Remove IC 20 (74C174 or 40174) from the DMX main board
and install it in socket U3 on the MIDI board.
- Remove IC 23 (4013) from the DMX main board and install
it in socket U4 on the MIDI board.
- Remove four RAM ICs and two EPROMs (IC 13, 14, 15, 16 17 and
18) from the DMX main board.
Remove IC 2 (74LS42) and IC 3 (4071).
These eight parts become surplus and may be discarded.
Remove the old NiCd battery, which is located to the left of U10. Please
recycle the battery properly.
After all the indicated ICs and battery have been removed, the DMX main
board should look
- Locate transistor Q1 (left of IC 12) and using diagonal cutters,
snip three leads and discard the transistor.
- Here's the tricky part: Using a sharp X-acto knife, cut the indicated
circuit board trace as shown below and scrape the solder mask from the circuit
trace just behind the cut. (It may help to temporarily unplug ribbon cable
G and pull it back to gain access to this area).
Preparing to make the cut:
The cut should look like this when finished. It's best to use two cuts about
a millimeter apart to make
a "V" shaped pass through the trace into the fiberglass board
Remove the debris from the board.
Use the edge of the knife to scrape the green coating (solder mask) covering
the copper trace as shown. When the
shiny tinned surface is visible through the entire width of the trace, you
have scraped enough.

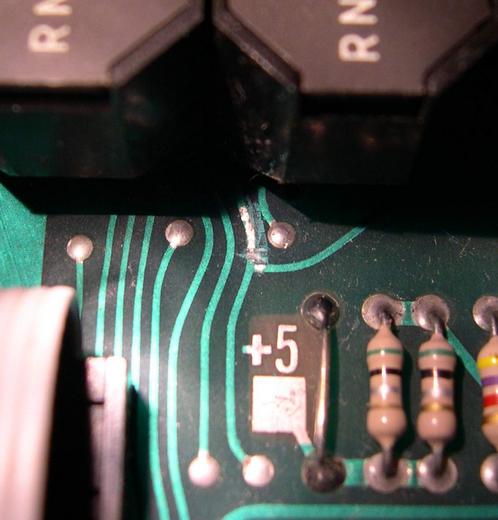

It should look like this when the solder mask is removed:
- Tin the bare copper where the solder mask was removed, and solder wire F from the MIDI
board to this point.
- Solder wire E to the right side of the resistor next to Q1, which was
just removed. Make a small "hook" in the end of the wire,
and hook it around the end of the resistor when soldering. Be careful
that the wire does not touch any traces passing under the resistor.
- Plug the ribbon cables from the MIDI board into the DMX main board.
Notice that JC1 and JD1 flip under the MIDI board in order to reach their sockets. Fold cable JD1 as shown.
|JB1||IC socket 12|
|JC1||IC socket 23|
|JD1||IC socket 20|
- Using the screws removed in step 3, attach the MIDI board to the standoffs.
- Remove the right side wooden end panel by undoing two screws on the outside, and replace it with the
new end panel which has two MIDI jacks installed. If you purchased a
matching replacement panel for the left panel, repeat the process on the
- If you want to make your own modifications to the end panel, use this cutting
diagram. A plunge router with a 1/4 in diameter bit works well for the cutout if you make two or three passes, cutting a
little bit deeper with each pass.
Alternately, you can use a drill
to make the cutout with a series of holes. A 3/4 inch Forstner bit
works well for this. You will probably need to use a chisel to
clear the bits between the drilled holes.
Use the jack plate
itself as a drilling guide for the mounting screws. Predrill the screw
holes with a 5/64 inch drill bit (test on a piece of scrapwood to make sure this hole size will work with the screws
provided). The provided screws are slightly longer than the thickness of
the wood panel, but this is not a problem for three of the screws. For
the screw at the top front, however, the protruding point can scratch the
case lid when it is opened and closed. For this reason, one screw that
has been shortened by cutting off the tip is provided along with the
others. It helps if you start with a long screw, to cut threads in the
wood, then back it out and use the short screw in this position.
- Plug the cable from the MIDI IN jack into connector JPH1 on the MIDI board, and plug the MIDI OUT cable
into connector JPG1.
Optionally, you can connect the output jack to the MIDI Thru connector
(JPT1) instead of the MIDI Out connector.
- Remove the old NiCd battery from the DMX (the large white
cylinder just in front of the bass, snare and hi-hat voice cards). Cut
the wires at each end, and take the old battery to a suitable battery
recycling center (do not put it in the trash!).
The new lithium battery on the MIDI board will keep your sequences in
memory when the power is off and, unlike the old battery,
does not require charging, and should last much longer.
With the addition of the new lithium battery, the warning label on the
outside of the case regarding battery charging no longer applies and may
be removed. Removal of this label can be done by dampening a folded paper
towel with denatured or isopropyl alcohol and placing it on the label for
a few minutes. (Don't overdo it -- you don't want liquid running down
the front panel). The paper label should become saturated and the
adhesive softened enough to peel or scrape the label off with a fingernail.
- Double-check the installation and make sure all the ribbon cables are plugged in correctly.
Then close the front cover, plug in the power cable and turn on the DMX while holding the
ERASE button (this will initialize the new memory).
In case there is a problem with the installation, check for the following common problems.
- Plug in power cable and turn on power switch.
- Make sure the front panel ribbon cables are plugged in properly.
- Make sure the MIDI board ribbon cables are plugged in correctly to the right sockets on the DMX main board.
- Check the orientation of all ICs that were moved from the DMX main board to the MIDI board. Check for bent pins.
- Make sure that the EPROMs were removed from the DMX main board.
|DMX works intermittently
- Make sure that all the old RAM ICs were removed from the DMX main board.
- Make sure all cables are plugged in securely.
|No DMX clock or no clock out
- Check installation of MIDI board wires E and F.
|MIDI not working
- Check for swapped MIDI input/output cables.
- Check MIDI settings under EDIT parameters.
For further assistance, contact Electrongate by email.
